PEEK/Hexalobular Socket Low Head Cap Bolts

PEEK/LH  Polyetheretherketone

PEEK (Polyetheretherketone) is used in many industries such as
semiconductor, electronics, medical and automotive as it
possesses excellent chemical and thermal properties.

These plastic bolts are made entirely of this advanced polymer and
do not cause metal contamination.

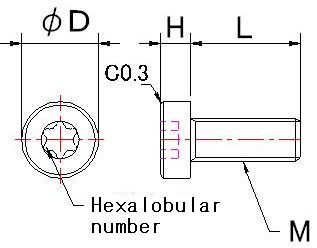

PEEK/Hexalobular Socket Low Head Cap Bolts

                                                                               Contact       Return

Part No

M (mm)

L (mm)

Pitch (mm)

D x H (mm)

Hexalobular number

PEEK/LH-3-6

3

6

0.5

5.5 x 2.4

10

PEEK/LH-3-8

3

8

0.5

5.5 x 2.4

10

PEEK/LH-3-10

3

10

0.5

5.5 x 2.4

10

PEEK/LH-3-12

3

12

0.5

5.5 x 2.4

10

PEEK/LH-3-16

3

16

0.5

5.5 x 2.4

10

PEEK/LH-3-20

3

20

0.5

5.5 x 2.4

10

PEEK/LH-4-6

4

6

0.7

7 x 3.1

20

PEEK/LH-4-8

4

8

0.7

7 x 3.1

20

PEEK/LH-4-10

4

10

0.7

7 x 3.1

20

PEEK/LH-4-12

4

12

0.7

7 x 3.1

20

PEEK/LH-4-16

4

16

0.7

7 x 3.1

20

PEEK/LH-4-20

4

20

0.7

7 x 3.1

20

PEEK/LH-4-25

4

25

0.7

7 x 3.1

20

PEEK/LH-5-6

5

6

0.8

8.5 x 3.65

25

PEEK/LH-5-8

5

8

0.8

8.5 x 3.65

25

PEEK/LH-5-10

5

10

0.8

8.5 x 3.65

25

PEEK/LH-5-12

5

12

0.8

8.5 x 3.65

25

PEEK/LH-5-16

5

16

0.8

8.5 x 3.65

25

PEEK/LH-5-20

5

20

0.8

8.5 x 3.65

25

PEEK/LH-5-25

5

25

0.8

8.5 x 3.65

25

PEEK/LH-5-30

5

30

0.8

8.5 x 3.65

25

PEEK/LH-6-10

6

10

1

10 x 44

30

PEEK/LH-6-12

6

12

1

10 x 44

30

PEEK/LH-6-16

6

16

1

10 x 44

30

PEEK/LH-6-20

6

20

1

10 x 44

30

PEEK/LH-6-25

6

25

1

10 x 44

30

PEEK/LH-6-30

6

30

1

10 x 44

30

PEEK/LH-6-40

6

40

1

10 x 44

30

PEEK is an FDA approved material.
