do not cause metal contamination.

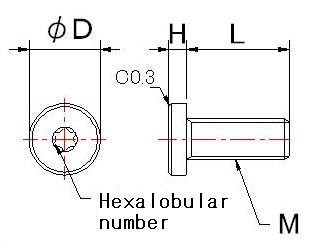

PEEK/Hexalobular Socket Special Low Head Cap Bolts
PEEK/SH Polyetheretherketone
PEEK (Polyetheretherketone) is used in many industries such
as
semiconductor, electronics, medical and automotive as it
possesses
excellent chemical and thermal properties.
These plastic bolts are made entirely of this advanced polymer and
do not
cause metal contamination.
|
Part No |
M (mm) |
L (mm) |
Pitch (mm) |
D x H (mm) |
Hexalobular number |
|
PEEK/SH-3-6 |
3 |
6 |
0.5 |
6 x 1.3 |
8 |
|
PEEK/SH-3-8 |
3 |
8 |
0.5 |
6 x 1.3 |
8 |
|
PEEK/SH-3-10 |
3 |
10 |
0.5 |
6 x 1.3 |
8 |
|
PEEK/SH-3-12 |
3 |
12 |
0.5 |
6 x 1.3 |
8 |
|
PEEK/SH-3-16 |
3 |
16 |
0.5 |
6 x 1.3 |
8 |
|
PEEK/SH-3-20 |
3 |
20 |
0.5 |
6 x 1.3 |
8 |
|
PEEK/SH-4-6 |
4 |
6 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-4-8 |
4 |
8 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-4-10 |
4 |
10 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-4-12 |
4 |
12 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-4-16 |
4 |
16 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-4-20 |
4 |
20 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-4-25 |
4 |
25 |
0.7 |
8 x 1.5 |
10 |
|
PEEK/SH-5-6 |
5 |
6 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-8 |
5 |
8 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-10 |
5 |
10 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-12 |
5 |
12 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-16 |
5 |
16 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-20 |
5 |
20 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-25 |
5 |
25 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-5-20 |
5 |
30 |
0.8 |
9 x 1.5 |
15 |
|
PEEK/SH-6-10 |
6 |
10 |
1 |
10 x 1.5 |
20 |
|
PEEK/SH-6-12 |
6 |
12 |
1 |
10 x 1.5 |
20 |
|
PEEK/SH-6-16 |
6 |
16 |
1 |
10 x 1.5 |
20 |
|
PEEK/SH-6-20 |
6 |
20 |
1 |
10 x 1.5 |
20 |
|
PEEK/SH-6-25 |
6 |
25 |
1 |
10 x 1.5 |
20 |
|
PEEK/SH-6-30 |
6 |
30 |
1 |
10 x 1.5 |
20 |
|
PEEK/SH-6-40 |
6 |
40 |
1 |
10 x 1.5 |
20 |
PEEK is an FDA
approved material.
